RRX3M-Z-012

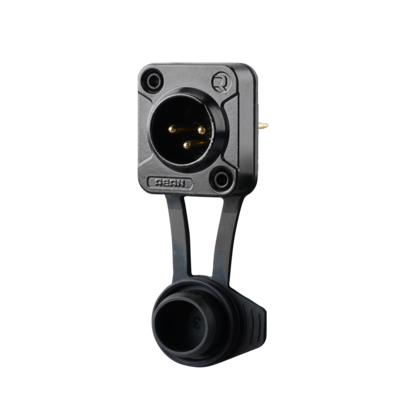

XLR 3 pole male receptacle, standard D-shape metal flange
IP65 rating to optimally protect your device or equipment from water ingress.
Airtight feature protect your device from Air ingress.
Selection of topics
Features & Benefits
Downloads
Technical Information
Features & Benefits
- The XLR system for harsh and demanding environment
- Airtight protection suitable for stage lighting application
- IP65 protection when mating with REAN Z series XLR connector or rubber cap closed
- Advanced and Reliable Airtight design structure
- UL94 V-0 rated materials
- Rugged diecast shell with fashionable black plating
- IP67 protection to prevent water intrusion into the device interior
Article Variations
| Article Name | Details | Packaging |
| RRX3M-Z-012-0/1 | Black plated housing, gold plated contacts | BULK / Plastic Bag |
Technical Information
| Product | |
| Title | RRX3M-Z-012 |
| Connection type | XLR Receptacle |
| Gender | Male |
| Electrical | |
| Contact resistance | <5 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 5 GΩ |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Insertion force | ≤ 40 N |
| Withdrawal force | ≤ 40 N |
| Lifetime | > 1000 mating cycles |
| Locking device | Latch lock |
| Mounting | Front |
| Chassis shape | See drawing |
| Panel Cutout | D |
| Wiring | vertical PCB mount |
| Material | |
| Contact plating | Gold plating |
| Contacts | Bronze |
| Shell | Zinc |
| Insert | PA66 |
| Shell plating | Black plating |
| Environmental | |
| Flammability | UL94 V-0 |
| Protection class | IP65 and Airtight |
| Temperature range | -30 °C to +80 °C |
