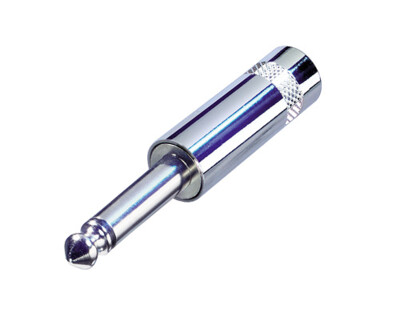

NYS201
2 pole 1/4'' plug, short metal handle
Downloads
Technical Information
| Product | |
|---|---|
| Title | NYS201 |
| Connection Type | Plug |
| Gender | male |
| Electrical | |
|---|---|
| Dielectric strength | 0.5 kVdc |
| Insulation resistance | ≥ 1 GΩ |
| Contact resistance | depends on mating connector |
| Rated current | depends on mating connector |
| Mechanical | |
|---|---|
| Cable O.D. | ≤ 6 mm |
| Lifetime | 1000 mating cycles |
| Wiresize | |
| Wiresize | 24 AWG |
| Material | |
|---|---|
| Contact plating | 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Insulation | Thermoplastic |
| Strain relief | Crimp type SnCe plated |
| Environmental | |
|---|---|
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +70 °C |
Article Variations
| Article Name | Details | Packaging |
| NYS201 | 2 pole 1/4'' plug, short metal handle | Plastic bag |
| NYS201L | 2 pole 1/4'' plug, short metal handle, large cable O.D. | Plastic bag |
