NYS226
Mono 2 pole 3.5 mm plug, crimp strain relief
Downloads
Technical Information
| Product | |
|---|---|
| Title | NYS226 |
| Connection Type | Plug |
| Electrical | |
|---|---|
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >200 MΩ(Initial) |
| Dielectric Strength | 500V dc 50HZ |
| Mechanical | |
|---|---|
| Cable O.D. | max 4.5mm for standard outlet max 6.4mm for large outlet ( * L） |
| Insertion and Withdrawal Force | ≤60 N |
| Lifetime | >1,000 Mating Cycles |
| Material | |
|---|---|
| Plug finger | Brass |
| Sleeve | Zinc |
| Cable Clamp | Steel |
| Housing | Zinc |
| Insulation | PP |
| Plug finger plating | Nickel |
| Sleeve plating | Nickel |
| Cable Clamp plating | Tin |
| Housing plating | Nickel |
Article Variations
| Article Name | Details | Packaging |
| NYS226 | metal handle | |

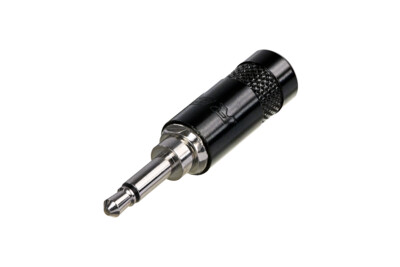

| NYS226B | black plated metal handle | |

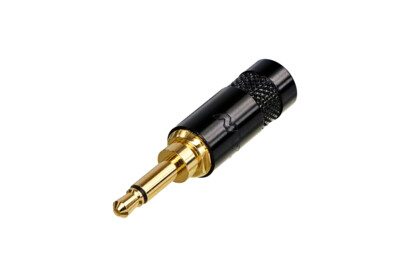

| NYS226BG | black plated metal handle, gold plated contacts | |

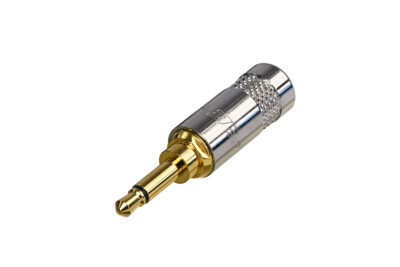

| NYS226G | metal handle, gold plated contacts | |

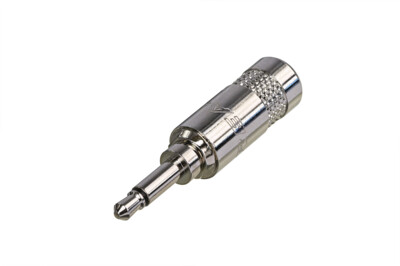

| NYS226L | metal handle, large cable outlet | |
| NYS226LBG | black plated metal handle,gold plated contacts,large cable outlet |
