Article Variations
| Article Name | Details | Packaging |

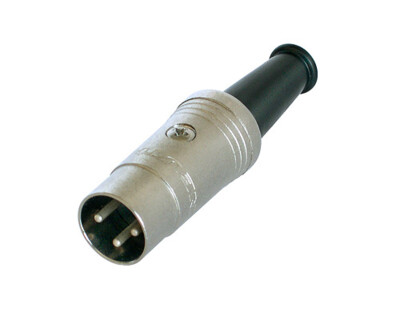

| NYS321 | silver plated contacts | |

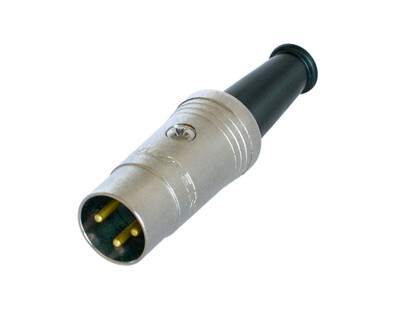

| NYS321G | gold plated contacts |
Technical Information
| Product | |
| Title | NYS321 |
| Gender | male |
| Electrical | |
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >1000 MΩ(Initial) |
| Rated Voltage | 50 VAC |
| Mechanical | |
| Insertion and Withdrawal Force | 3-24N |
| Lifetime | >1000 Mating Cycles |
| Cable O.D. | < 6.5 mm |
| Material | |
| Pin | Brass |
| Boot | PVC |
| Housing | Zinc |
| Wire locker | Steel |
| Screw | Brass |
| Pin Holder | PA6 |
| Pin | Silver Plated |
| Wire locker | Nickel |
| Screw | Nickel |
