NYS322 NYS322G NYS322AG
NYS322
NYS322G
NYS322AG
1/3
rean / Indoor / DIN / NYS Series / NYS322

NYS322

Download Data Sheet

5 pole DIN cable connector, male

Downloads
NYS322
pdf - 45.93 KB
NYS322
dxf - 1.26 MB
3D File NYS322
stp - 588.38 KB
Assembly Instruction-REAN DIN MALE CONNECTOR
pdf - 707.21 KB
Product
Title NYS322
Gender male
Electrical
Contact Resistance <10 mΩ
Insulation Resistance >1000 MΩ(Initial)
Dielectric Strength 500V dc
Rated Voltage 50 VAC
Mechanical
Insertion Force ≤40N
Withdrawal Force >5.5N
Lifetime >1000 Mating Cycles
Cable O.D. < 6.5 mm
Material
Pin Brass
Pin Holder PA6+30%GF
Screw Steel
Cable Clamp Steel
Housing Zinc
Boot PVC
Pin Silver Plating
Screw Nickel Plating
Cable Clamp Nickel Plating
Housing Nickel Plating
Article Variations
Article Name Details Packaging

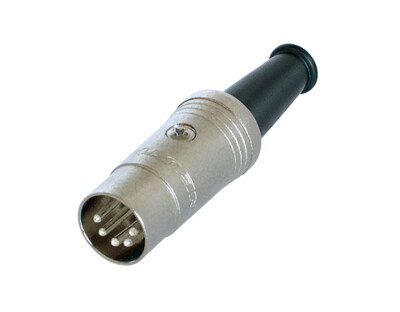

NYS322 silver plated contacts

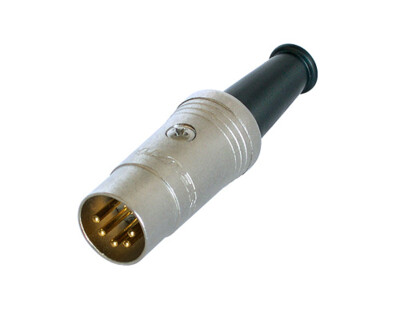

NYS322G gold plated contacts

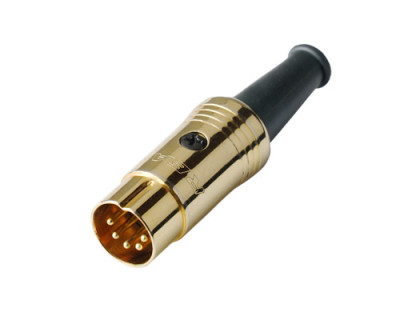

NYS322AG gold plated shell and contacts
