rean > Indoor > DIN > NYS Series > NYS323
NYS323
NYS323G
NYS323
NYS323G

NYS323

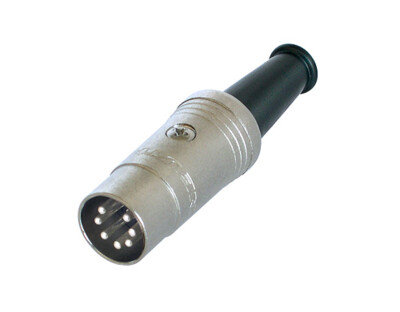

7 pole DIN cable connector, male

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Drawing NYS323
  • Drawing NYS323

Article Variations

Article Name Details Packaging
NYS323 silver plated contacts

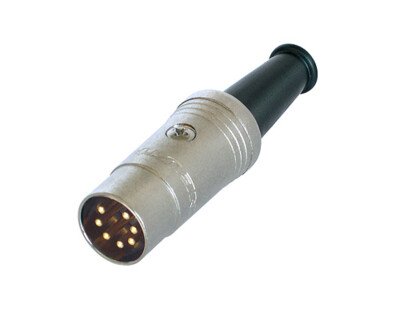

NYS323G gold plated contacts

Technical Information

Product
Title NYS323
Gender male
Electrical
Contact Resistance <10 mΩ
Insulation Resistance >1000 MΩ(Initial)
Dielectric Strength 500V dc
Rated Voltage 50 VAC
Mechanical
Insertion Force ≤56N
Withdrawal Force >7.5N
Lifetime >1000 Mating Cycles
Cable O.D. < 6.5 mm
Material
Pin Brass
Pin Holder PA6+30%GF
Screw Steel
Cable Clamp Steel
Housing Zinc
Boot PVC
Pin Silver Plating
Screw Nickel Plating
Cable Clamp Nickel Plating
Housing Nickel Plating
