RC3FR

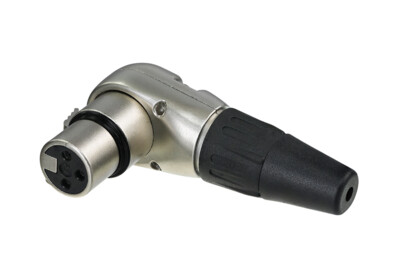

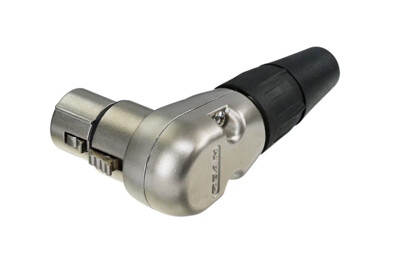

3 pole female right-angle XLR cable connector
Downloads
Technical Information
| Product | |
|---|---|
| Title | RC3FR |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
|---|---|
| Insulation Resistance | > 1.5 GΩ |
| Contact Resistance | ≤ 5 mΩ |
| Rated Current | 10 A |
| Mechanical | |
|---|---|
| Lifetime | > 1000 Mating Cycles |
| Insertion Force | ≤ 30 N |
| Withdrawal Force | ≤ 20 N |
| Cable O.D. | 4 - 7 mm |
| Wiresize | 1.5 mm² |
| Wiresize | 16 AWG |
| Material | |
|---|---|
| Jack | Bronze |
| Plastic Body | PA6+30%GF UL94-HB |
| Ground Contact | Steel |
| Housing | Zinc |
| Button | Zinc |
| Rubber Ring | Rubber |
| Front Body | Zinc |
| Push Tube | PP |
| Cover | Zinc |
| Chuck | POM |
| Bushing | PA6+30%GF |
| Push Ring | POM |
| Boot | PVC |
| Jack | Sliver Plating |
| Ground Contact | Tin and Cer |
| Housing | Nickel Plating |
| Button | Nickel Plating |
| Front Body | Nickel Plating |
| Cover | Nickel Plating |
Article Variations
| Article Name | Details | Packaging |
| RC3FR | Nickel plated housing, Silver plated contacts | Plastic bag |
| RC3FR-D | Nickel plated housing, Silver plated contacts | BULK |
| RC3FR-B | Black plated housing, gold plated contacts | Plastic bag |
| RC3FR-B-D | Black plated housing, gold plated contacts | BULK |

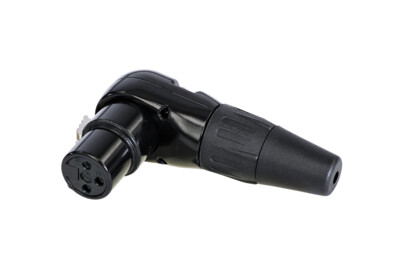

| RC3FR-BAG | Black plated housing, Silver plated contacts | Plastic bag |
| RC3FR-BAG-D | Black plated housing, Silver plated contacts | BULK |
