RCJ9FI
3 pole XLR female receptacle with 1/4" switching stereo jack
Downloads
RCJ9FI-H
pdf - 140.26 KB
RCJ9FI-H
dxf - 2.38 MB
3D File RCJ9FI-H
stp - 2.1 MB
RCJ9FI-H-0
pdf - 137.03 KB
RCJ9FI-H-0
dxf - 2.24 MB
3D File RCJ9FI-H-0
stp - 2.02 MB
RCJ9FI-V
pdf - 138.71 KB
RCJ9FI-V
dxf - 2.4 MB
3D File RCJ9FI-V
stp - 2.03 MB
RCJ9FI-V-0
pdf - 135.6 KB
RCJ9FI-V-0
dxf - 2.32 MB
3D File RCJ9FI-V-0
stp - 1.95 MB
Assembly Instruction-Switching Combo I
pdf - 2.57 MB
Technical Information
| Product | |
|---|---|
| Title | RCJ9FI |
| Connection Type | XLR/Jacks Combo |
| Electrical | |
|---|---|
| Contact Resistance | ≤ 30 mΩ |
| Insulation Resistance | ≥10GΩ(Initial) |
| Dielectric Strength | 1.5 KVdc |
| Mechanical | |
|---|---|
| Insertion and Withdrawal Force | ≤40N(XLR) ≤30N（6.35mm Plug） |
| Lifetime | >1,000 Mating Cycles |
| Material | |
|---|---|
| Plastic Housing | PA66+30%GF |
| End Cap | PA66+30%GF |
| Contact | Steel |
| Ground Contact | Bronze |
| Push Latch | Bronze |
| Plating | Steel |
| Contact | Sliver Plating |
| Ground Contact | Sliver Plating |
| Contact | Ni+Sn+Au Plating |
| Push Latch | Nickel Plating |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Flammability | UL94 HB |
Article Variations
| Article Name | Details | Packaging |

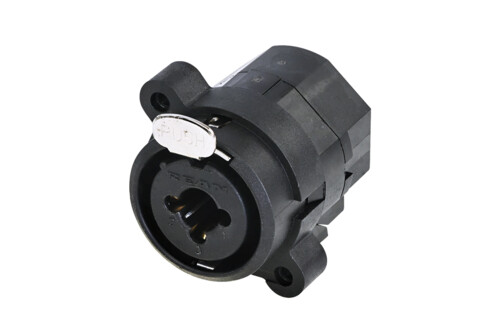

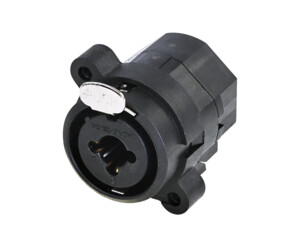

| RCJ9FI-H | Horizontal PCB contacts, locking latch | BULK |

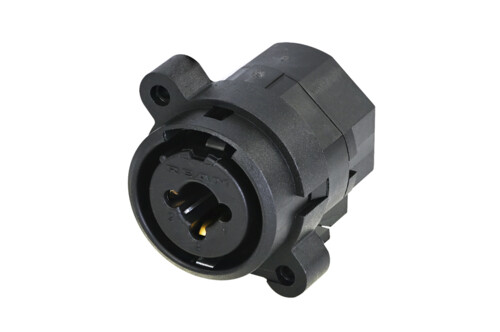

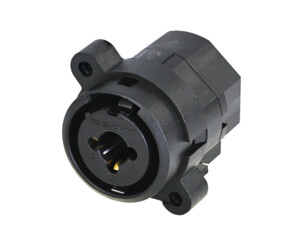

| RCJ9FI-H-0 | Horizontal PCB contacts, retention spring | BULK |

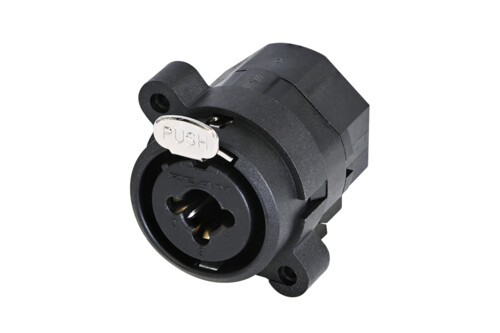

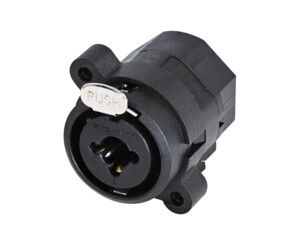

| RCJ9FI-V | Vertical PCB contacts, locking latch | BULK |

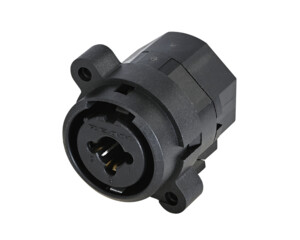

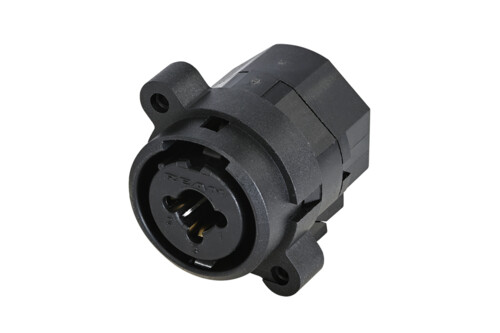

| RCJ9FI-V-0 | Vertical PCB contacts, retention spring | BULK |
