RP2RCF
Mono 1/4" right-angle plug with pan head
Technical information
| Product | |
|---|---|
| Title | RP2RCF |
| Connection Type | Plug |
| Electrical | |
|---|---|
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 0.5 kV dc |
| Insulation resistance | > 1 GΩ |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Insertion and Withdrawal force | ≤ 60N |
| Cable O.D. | 4 - 7 mm |
| Material | |
|---|---|
| Sleeve & Inner | Brass |
| Sleeve plating | Nickel |
| Inner plating | Nickel / Gold |
| Shell | Steel |
| Shell plating | Nickel / Black |
| Environmental | |
|---|---|
| Temperature range | -20 °C to +70 °C |
| Flammability | UL 94 HB |
| Solderability | complies with IEC68-2-20 |
Article Variations
| Article Name | Details | Packaging |

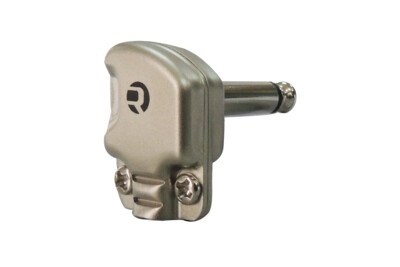

| RP2RCF | Nickel Housing,Nickel plated contacts | Plastic Packaging |
| RP2RCF-D | Nickel Housing,Nickel plated contacts | BULK |

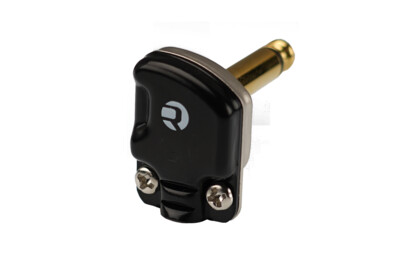

| RP2RCF-B | Black Housing,Gold plated contacts | Plastic Packaging |
| RP2RCF-B-D | Black Housing,Gold plated contacts | BULK |

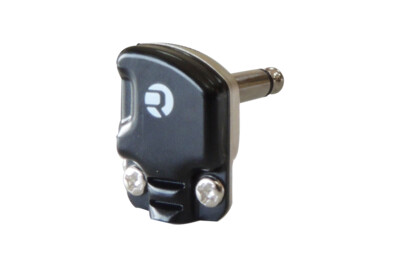

| RP2RCF-BAG | Black Housing,Nickel plated contacts | Plastic Packaging |
| RP2RCF-BAG-D | Black Housing,Nickel plated contacts | BULK |
