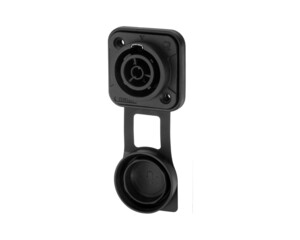

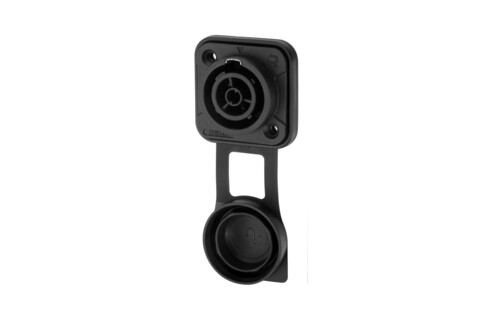

with-RA-003
1/2
rean / Outdoor / Power Connectors / X Series / Power connectors / RRAC3F-X-000

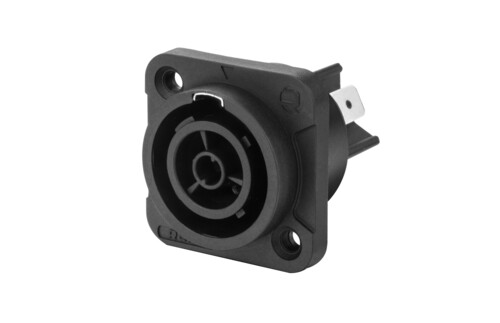

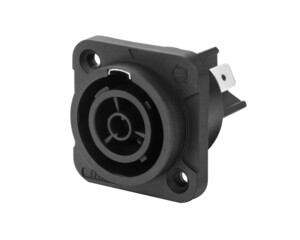

RRAC3F-X-000

Download Data Sheet

Lockable power outlet chassis connector, with excellent flammability class by using V0 materials.

Designed for outdoor applications, IP65 protection, weather resistant.

The power X series are connectors with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Downloads
Drawing RRAC3F-X-000
pdf - 103.99 KB
Drawing RRAC3F-X-000
dxf - 2.35 MB
3D File RRAC3F-X-000
stp - 5.11 MB
Assembly Instruction - RRAC3F-X-000
pdf - 1.7 MB
CB Certificate RRAC3F-X-000
pdf - 104.48 KB
VDE Certificate RRAC3F-X-000
pdf - 342.76 KB
Links
UL Certificate cUL Certificate

Technical Information

Product
Title RRAC3F-X-000
Connection Type Power
Electrical
Number of contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 60320-1: 20 A 250 V AC
Dielectric strength 4 kV dc / 2.8 kV ac
Contact resistance ≤ 2 mΩ
Insulation resistance (after dampheat) > 1 GΩ
Mechanical
Retention method Twist lock
Lifetime > 5000 mating cycles
Wiring Flat tabs 6.35 x 0.8 mm
Material
Shell Polyamide
Contacts Copper alloy
Contact plating Ag
Locking element Stainless steel
Environmental
Temperature range -30 °C to +80 °C
Flammability UL94 V-0
Accessories

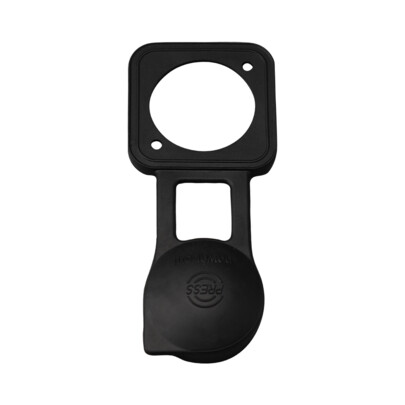

RA-X-003

​The rubber sealing cover for the power X sereis chassis connector RRAC3F-X-000
Article Variations
Article Name Details Packaging
RRAC3F-X-000-0 Power outlet BULK
RRAC3F-X-000-1 Power outlet Plastic bag
